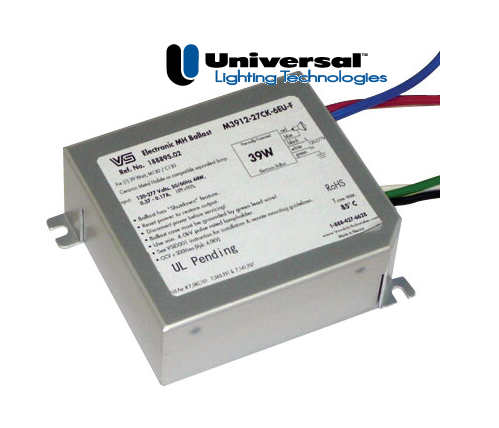

Universal M3912-27CK-6EU-J

Universal 39W 120-277V Metal Halide M130 J-Box Mount eHid Ballast

• (1) 35-39W Ceramic Metal Halide Lamp
• Ansi Code M130/C1306
• Voltage : 120-277V, +/-10%, 50/60Hz
• Resonance Start
• Active power factor correction
• Microprocessor controlled

• DIM: (L) 3.74in (W) 2.98in x (H) 1.24in
• Feet mount (Side lead exit)
• Universal Order Code 188895.02
• 5-Lead Wires( Black, White, Green,Blue, Red)
• RoHS Compliant
• Spec Sheet


Additional Information

• Energy Efficient
• Greater than 20% increase in efficiency
• Lowers lighting operation costs

• Full Light Output
• Provides same light levels as magnetic ballasts being replaced
• Quiet Operation

• Significantly quieter than magnetic ballasts
• High Frequency Operation
• No lamp flickering
• Light Weight - Low Profile Case
• Simplifies transportation & installation
• Less interference with ballast channel cover during replacement
• Slimline Ballasts Feature Parallel Lamp Operation
• When one lamp fails, other lamp remains lit
• Instant start electronic ballast for long lamp starting cycles and low initial cost

• RoHs Compliant

• UL Type 1 Outdoor


Cross Reference

• Aromat M3912CK-6EU-J
• GEMH39-MSF-120
• Hatch MC39-1-J-UNNU
• Philips Advance IMH-39-G-BLS

• Sylvania QTP1X39MH UNV SQ J

• Vossloh Schwabe: M3912CK-6EU-J
