Product Overview

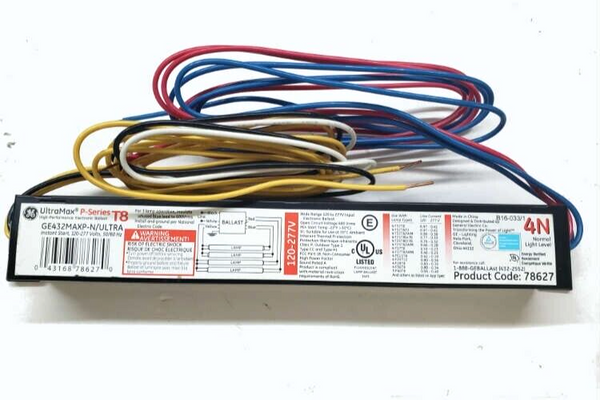

GE Lighting UltraMax-N 4-Lamp F32T8 High Efficiency Instant Start Electronic Ballast
Operates the Following Lamp Types:
- (4) F17T8/ECO
- (4) F25T8/ECO
- (4) F32T8/25W
- (4) F28T8/28W
- (4) F32T8/WM
- (4) F32T8
Additional Information:
- GE LFL UltraMax™ Electronic High Efficiency Multivolt Instant Start Ballast
- Energy saving high efficiency instant start electronic ballast (> 90%)
- Multi-Voltage Technology handles voltage from 120 to 277V
- UL Type CC Rating provides protection against arcing in electrical devices
- Anti-Striation Control for better light quality, with no striations.
- UL 55C Ambient Rating - HighTemperature Protection Circuit
- Cold temperature -20F Minimum Starting Temperature
- Multi-Voltage Technology handles voltage from 120 to 277V
- Light-weight, Low Profile Housing (Dim:9.5”L x 1.3”W x 1.2”H)
- Parallel Circuitry: keeps remaining lamps lit if one or more go out
- Max Case Temp 70° C
- Complies with FCC 47 CFR Part 18, Non-Consumer
- Normal Ballast Factor < 10% THD
- Sound Rating A (20-24 decibels)
- RoHs Compliant
- Lamp Wiring Parallel
- UL Type 1 Outdoor
