Product Overview

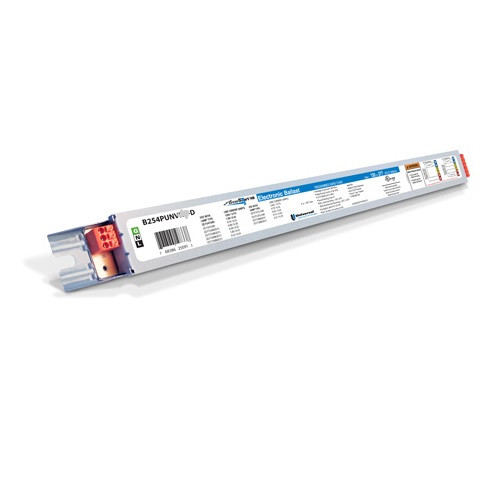

Universal Lighting 19830 Triad Accustart5 B254PUNVD 2-Lamp 54WT5HO 120/277 Vac 50-60HZ Programmed Rapid Start Electronic Ballast Operates the Following Lamps:
- (1-2) F54T5HO (F54T5HO/Alto,FP54HO/ECO,FQ 49W/T5,F54WT5/HO/ECO)
- (1-2) F54T5ES 49W (F54T5/49W/Alto ,FP54/50W,FQ 49W,F49WT5/HO/ECO)
- (1-2) FT55W/2G11(PL-L 55W/4P, FT55DL/ECO, Dulux L 55W/4P)
- (1-2) FT50W/2G11(PL-L 50W/4P, FT50DL/ECO, GE F50BX/4P)
- (1-2) FT36W/2G11(PL-L 36W/4P, FT36DL/ECO, Dulux L 36W/4P)
- (1) FC12T5/HO 55W (TL5C 55W, FC 55W)
Additional Details
- Programmed Rapid Start
- Series Lamp Operation
- Active Power Factor Correction
- Auto Reset after Lamp Replacement
- End of Lamp Life Shutdown Circuitry
- Light-weight, Low Profile Housing
- (Dim:16.88”L x 1.18”W x 1.00”H)
- Line Voltage: 120 - 277 vac, ±10%, 50/60Hz
- Manufactured in North America
- Meets ANSI Standard C82.11-1993
- Normal Ballast Factor < 10% THD
- Sound Rating A (20-24 decibels)
- UL Type 1 Outdoor
