Product Overview

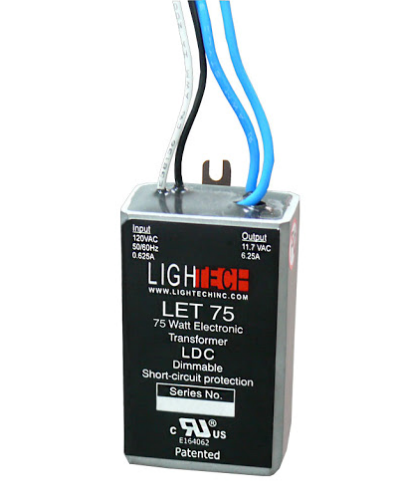

GE Lightech 75 Watt Halogen Electronic Step-Down 120-12V Aluminum Silver Case Transformer With Mounting Tab
Product Details
- 100% Dimmable
- Power: 75 W Input
- Input voltage: 120V
- Power factor: 0.95
- Output voltage: 11.7 V
- Input current: 0.635-0.635 A
- Input frequency: 50/60 Hz Output
- Output current range: 6350-6350 mA
- Environment Ta max: 50 °C Standards
- UL: E164062 Mechanical
- Input wires color: black/white
- Output wire color: blue
- DIM:2.09in (L) X 1.29in (W) X 0.78in(H)
- Material: Aluminum
Additional Information
GE Lightech transformers offer outstanding dependability and efficiency, from smarter technology to longer life cycles, and everything in between. Features include: • Utilizes a unique Auto-Thermal Regulation process – proportional dimming of output voltage over 90è_C • Self-preserving 125è_C Thermal Cut-off • Embedded technology to run cool with higher efficiency – 95% at full load • Triac dimmer compatibility – will not produce acoustic noise • Field-effect transistors – resulting in higher efficiency, smaller size and longer life than products with bipolar transistors
Specifications may vary without notice Always consult National, State and local electrical codes Parameters are measured at rated output, rated load and at an ambient temperature of 25°C Expect slight variation including component tolerance, setup tolerance, line regulation and load regulation Power supplies should always be stress tested and tested for EMC within specific fixtures Where grounding/earthing is not indicated, avoid grounding/earthing or contact with grounded/earthed metal enclosures Performance with dimmers, where supported, may vary depending on dimmer model Subject to limited warranty (3yr for transformers, 5yr for drivers) terms and conditions as published from time to time
