Product Overview

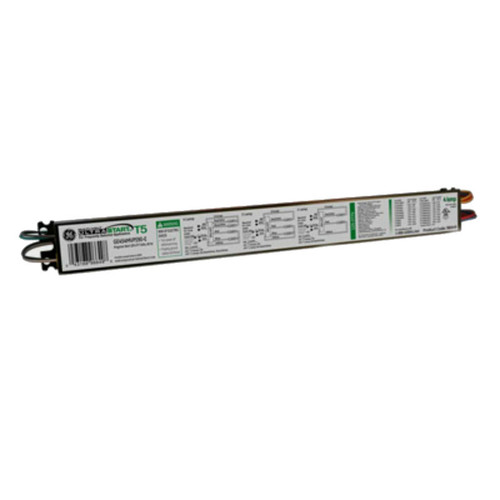

GE Ultrastart GE454MVPS90 Programmed Start 3-4 Lamp F54T5/HO Fluorescent Ballast Operates the Following Lamps:
- (1-4) F54T5HO (F54WT5/ECO, FP54HO/ECO, FQ 54W)
- (1-4) FT55DL/2G11(PL-L 55W/4P, FT55DL/ECO, Dulux L 55W/4P)
- (1-4) FPC55 (FC12T5/HO 55W HO Circular T5 4-Pin)
- (1-4) L58W T8 Fluorescent Lamps
- (1-4) FT36W/2G11 (PL-L36W/4P,FT36DL/4P, Dulux L 36W)
- (1-4) CFM36W/2G10 (Dulux F 36W)
Additional Information
- Replaces GE #99649 ,GE #99650
- GE UltraStart ballasts operate at an industry high 95% efficiency
- High Efficiency T5 ballast with Continuous Cathode Cutout Technology
- Lower Maintenance Costs with Parallel Lamp Operation
- Voltage Range : 108 - 305 vac, ±10%, 50/60Hz
- Auto-Restart withstands temporary losses in power
- without the need to cycle power
- UltraCool Operation 90C case rating
- Programmed Rapid Start
- Series Lamp Operation
- Active Power Factor Correction
- Light-weight, Low Profile Housing
- Normal Ballast Factor
- Fast Starting Time
- Sound Rating A
- UL Type 1 Outdoor
Cross Reference:
- Universal B454PUNV-E
- Hatch HL454HO/PS/UV/W
- Sylvania QTP4X54T5HO/UNVPSN
- Philips Advance ICN4S54-90C
- Keystone KTEB-224HO-UV-TP-PS
- Robertson PSY454T5MVEL /A
