Product Overview

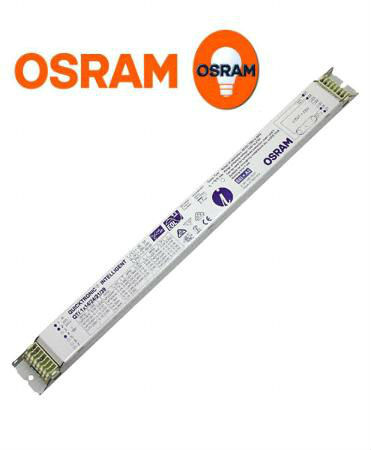

Osram Quicktronic Intelligent QTI 1X14/24/21/39/220-240 1 Lamp Fluorescent Ballast |
Operates the Following Lamps:
- 1x 28W HE, 1 x HE 14, 1 x HE 21,1 x HO 24W, 1 x HO 39W
- Osram Product code: 4050300796871
- Nominal voltage 220-240V
- Mains frequency 50…60 Hz
- DC voltage 176…254 V
- Operating frequency 45…70 kHz ±10%, 50/60Hz
- Dimension (L) 360mm
- UL Type 1 Outdoor
Additional Information:
- Optional operation of HO and HE lamps of equal length 50,000 hours lifetime*
- Preheat start within 1 second Constant light output for UN = 198 V to 264 V
- Reliable lamp ignition at ta = −20 °C to +50 °C Cut-Off technology
- Suitable for luminaires of PC I and II EEI = A2 Automatic safety shut down at end of lamp life
- or in case of failure acc. to EoL T.2 Automatic ignition after lamp replacement Suitable for emergency lighting
- (DC operation, 0 Hz) CW terminals for manual and robotic wiring * for t = 70 °C at tc; max. failure
