Product Overview

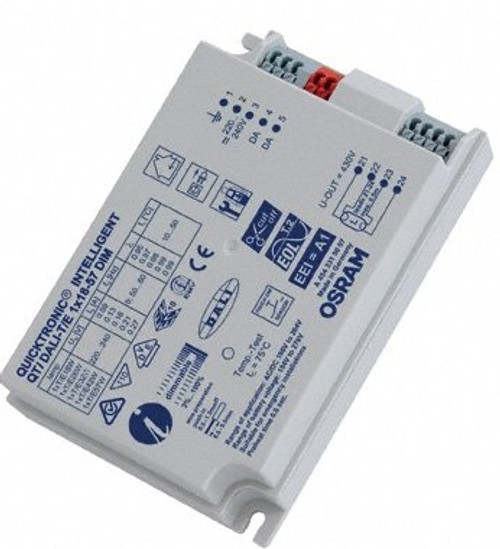

Osram Quicktronic Intelligent DALI 1-Lamp 14W & 17W CFL OSRAM DULUX T/E HE Ballast
Operates the Following Lamps:
- 1 x T/E 14W HE, 1x T/E 17W HE
Additional Information:
- Osram Product code: 4008321327383
- Supply Voltage 220-240V
- Line frequency 50…60 Hz
- Line voltage: 198 - 264V
- Digitally controlled preheating
- Lamp start within 0.6 seconds
- Optimum preheating in any dimmer setting
- Cut-off above 80% luminous flux
- Dimming range 100 to 1%
- Automatic safety shutdown of lamps in the event of a defect or at end of life (EOL)
- Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
- Configurable emergency power characteristics; light value can be set between 100 %
- 1 % luminous flux without a control signal
- Same luminous flux with direct and alternating current
- The battery voltage may drop to 154 V. Ignition must take place above 198 V
- Digitally controlled preheating
- Perfect lamp starting for applications with motion sensors, lamp start within 0.5 Seconds
- Optimum preheating in any dimmer setting
- Dimming range: 3 to 100 % luminous flux
