Product Overview

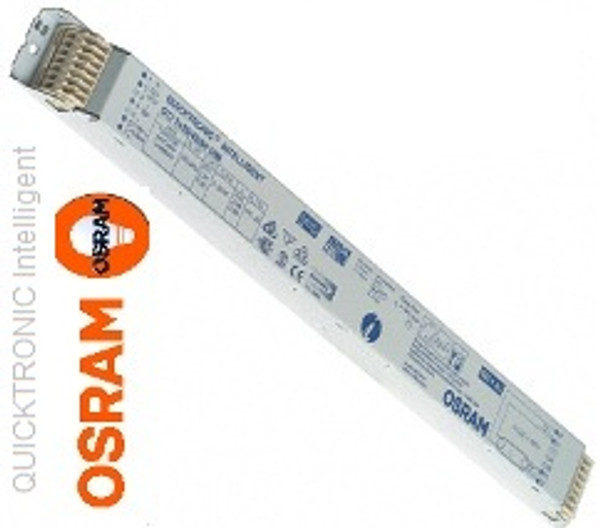

Osram Quicktronic Intelligent DALI 1X 35/49/80 220-240V Dimmable Fluorescent Ballast
Operates the Following Lamps:
- 2 x HE 35W, 2 x HO 49 , 2 x HO 80,
Additional Information:
- Osram Product code: 4050300870441
- Supply Voltage 220-240V
- Line frequency 50…60 Hz
- Line voltage: 198 - 264V
- Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
- Configurable emergency power characteristics; light value can be set
- Between 100 % and 1 % luminous flux without a control signal
- Operating frequency 45…70 kHz ±10%, 50/60Hz
- Dimension (L) 360mm
- Same luminous flux with direct and alternating current
- The battery voltage may drop to 154 V. Ignition must take place above 198 V
- Digitally controlled preheating
- UL Type 1 Outdoor
