Product Overview

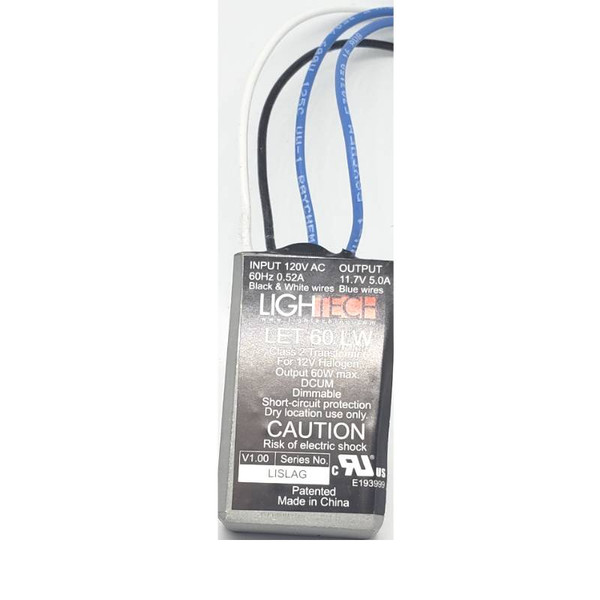

GE- Lightech 901060010LW Low Wattage 60W Class 2 Step-Down 120V Input-12V Output Electronic Transformer With A 2.9W Minimum Load Ideal For AC LED MR16 Lamps
Product Details
- 100% Dimmable
- Power: 60 W Input
- Input voltage: 120V
- Power factor: 0.95
- Output voltage: 11.7 V
- Input current: 0.5-A
- Input frequency: 60 Hz Output
- Output current range: 5000mA
- Environment Ta max: 50 °C Standards
- UL: E164062 Mechanical
- Input wires color: black/white
- Output wire color: blue
- DIM:2.09in (L) X 1.29in (W) X 0.78in(H)
- Low 2.9W Minimum Load makes it
- suitable for AC LED MR16s.
- General Electric 66938 Replaces Lightech 901060010LW
Additional Information
|
GE Lightech 60W 12V Low Wattage Electronic transformer • Low wattage ‐ minimum load is 2.5W this allows lower wattage lamp loads • Compact Form Factor • Cast aluminum housing • High voltage – High temperature wire rating • Auto Thermal cut‐off at 125°C • Auto‐Thermal Regulation – begins dimming the lamp load proportional to the rise on case temperature above 80°C • Short Circuit Protection • High maximum case temperature 90°C • Class 2 power supply Also offer outstanding dependability and efficiency, from smarter technology to longer life cycles, and everything in between.
Specifications may vary without notice Always consult National, State and local electrical codes Parameters are measured at rated output, rated load and at an ambient temperature of 25°C Expect slight variation including component tolerance, setup tolerance, line regulation and load regulation Power supplies should always be stress tested and tested for EMC within specific fixtures Where grounding/earthing is not indicated, avoid grounding/earthing or contact with grounded/earthed metal enclosures Performance with dimmers, where supported, may vary depending on dimmer model Subject to limited warranty (3yr for transformers, 5yr for drivers) terms and conditions as published from time to time |
