Product Overview

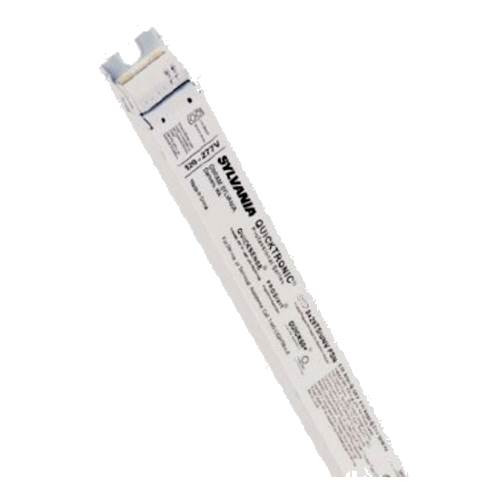

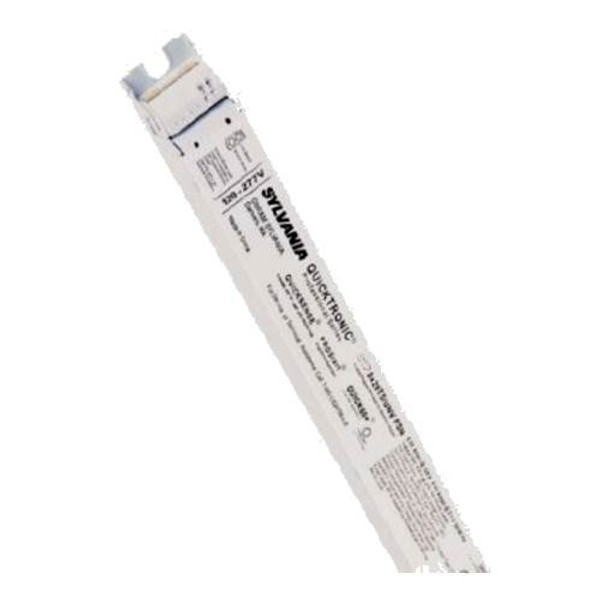

Sylvania P/N 49130 Quicktronic Prostart QTP2x54T5HOUNV 2-Lamp F54T5 High Output Ballast
Operates the Following Lamps:
- (1-2) F54T5/HO
- (1-2) FT55DL/2G11
- (1-2) FPC55- FC55T5)
- Specs
Additional Information:
- Lead Wires included
- Universal Voltage: 120 - 277 vac, ±10%, 50/60Hz
- Quicksense ballast technology (end-of-lamp-life sensing)
- ProStart programmed rapid start
- UL type CC rated
- 0°F (-18°C) Starting
- Operates at >40 kHz to reduce potential interference with infrared control systems
- Low harmonic distortion
- UL, CSA, FCC
- RoHS compliant
- Lead-free solder and manufacturing process
- Light-weight, Low Profile Housing
- (16.73"L x 1.18"W x 0.87"H)
- Manufactured in North America
- Meets ANSI Standard C82.11-1993
- Normal Ballast Factor < 10% THD
- Sound Rating A (20-24 decibels)
- UL Type 1 Outdoor
Sylvania Quicktronic Prostart T5 BallastsOperate PENTRON T5 lamps
with full lumen output and optimal system performance.
