Product Overview

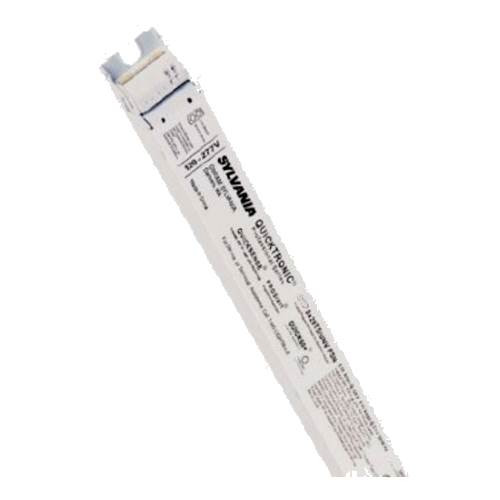

Sylvania Quicktronic Premier QTP2X54T5HOUNVPS80 Fixed Output BF0.80 Ballast
Operates the Following Lamps:
- (1-2) F54T5/HO (F54T5HO/Alto,FP54HO/ECO,FQ 54W,F54WT5/ECO)
- Specs
Additional Information:
- No Lead Wires included
- Quicksense ballast technology (end-of-lamp-life sensing)
- Universal Voltage: 120 - 277 vac, ±10%, 50/60Hz
- Suitable for use with occupancy sensors
- Dim:9.5" L x 1.68" W x 1.18" H
- UL type CC rated
- 0°F (-18°C) Starting
- Operates at >40 kHz to reduce potential interference with infrared control systems
- Low harmonic distortion
- UL, CSA, FCC
- RoHS compliant
- Lead-free solder and manufacturing process
- Light-weight, Low Profile Housing
- (16.73"L x 1.18"W x 0.87"H)
- Meets ANSI Standard C82.11-1993
- Normal Ballast Factor < 10% THD
- Sound Rating A (20-24 decibels)
- UL Type 1
Sylvania’s Quicktronic Premier T5HO 0.80BF ballasts operate Pentron T5HO ECO Lamps.
The ballast is tuned to provide a unique 0.80 ballast factor, providing 20% energy savings
over conventional 2 lamp 54W T5HO systems. with full lumen output and optimal system performance.
