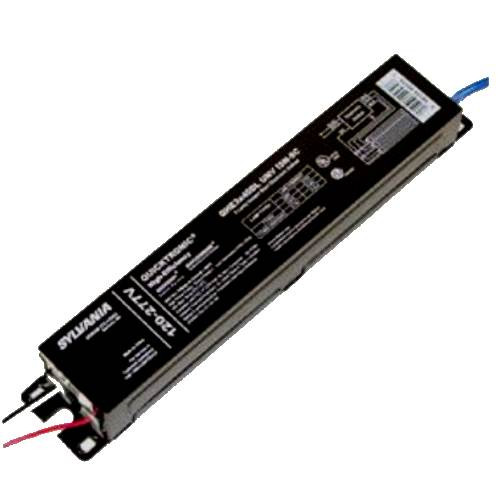

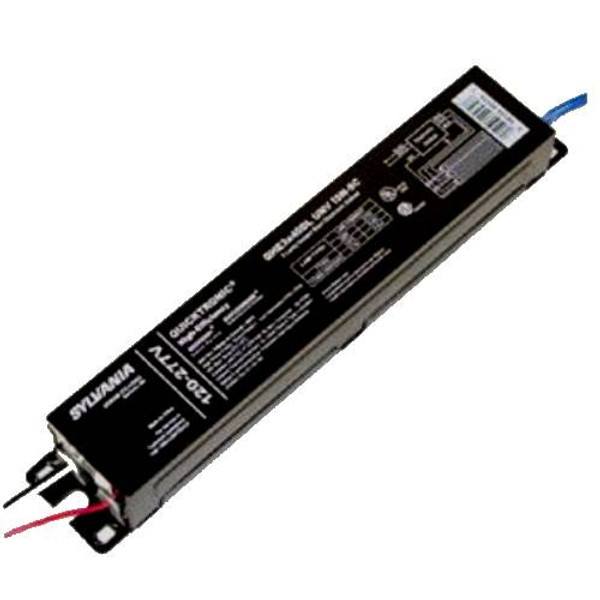

Sylvania 49845 QTP3x32T8/UNV ISH-SC

Sylvania Quicktronic Professional Series QTP-3x32T8-UNV ISH-SC High Ballast Factor Multi-Volt 120/277V Fluorescent T8 Ballast

Operates the Following Fluorescent Lamps:

• (1-2) FO32/25W 48in Energy Saving F32T8 25W Lamps

• (1-2) FO32/28W 48in Energy Saving F32T8 28W Lamps

• (2) FO30/SS (48in Energy Saving F32T8 30W Advantage Lamps)

• (1-2) F32T8 (48in FO32/ECO 32W Standard Lamps)

• (1-2) FBO16,FBO24, FBO29/SS, FBO30/SS,

• FBO31,FBO32 U-Bend Lamps
• (1) FO40 60in Fluorescent T8 Lamp
• Ballast Factor 1.18
• Sold 10/Case


Additional Information:

• 70C Max Case Temperature

• UL Listed Class P, Type 1 Outdoor
• Ground ballast case

• Lampholder must be shorted per diagram

• Install in accordance with National Electric Codes

• Complies with FCC 47 CFR Part 18, Non-Consumer

• ANSI 62.41 Cat. A Transient Protection

• Class A Sound Rating.

• Input Frequency: 50/60Hz.

• Complies with UL935 requirements for "Type CC" rating

• Minimum starting temperature: 60 F / 16 C with SS lamps

• Minimum starting temperature: -20 F / -29 C

• CSA certified.
• ANSI C82.11 where applicable.

• NO PCB (Polychlorinated Biphenyl)

• Remote mounting up to 20 feet Lamp Striation Control (LSC) may minimize

• Or eliminate lamp striations which can occur in T8 energy savings lamps.
• Small Can Enclosure Design (Dim:9.47”L x 1.69”W x 1.18”H)
• Minimum starting temperature: -20 F / -29 C
• Complies with FCC 47 CFR Part 18, Non-Consumer

• Normal Ballast Factor < 10% THD
• Dual Voltage 120-277V 50/60Hz
• Circuit Type Parallel
• Meet NEMA Premium Electronic M Ballast Program Requirements and qualify for utility incentives
• Deliver 30-60% energy savings when D compared to F34T12 magnetically ballasted systems
• Offer up to 6% (2-5 Watt) energy O savings over standard electronic ballasts

• Achieve over A 100 (LPW) with OCTRON® 800 XP® SUPERSAVER® lamps

• Available in: A – Instant Start and PROStart® (Programmed Rapid Start)

• Bi-level QUICKSTEP® and POWERSENSE® Dimming models

• Excellent for The Most Stringent energy codes and sustainability focused projects

 Cross Reference:

• Universal B232IUNVEL-A
• GE-232-MAX-L/ULTRA
• Advance IOP-2P32-LW-SC
• Keystone KTEB-232-UV-IS-L-P
