Product Overview

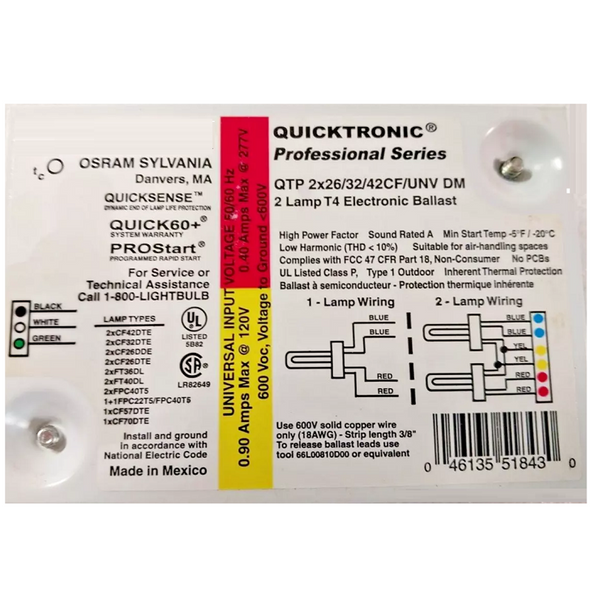

Sylvania Quicktronic ProStart QTP2X26/32/42CF/UNV DM - 2-Lamp Programmed Start Electronic Ballast
Compatible Fluorescent Lamps
- 13W T4 DULUX D/E, T/E: 1-lamp (QTP1/2x13CF/UNV) or 2-lamp operation
- 18W T4 DULUX D/E, T/E: 1-lamp (QTP1/2x18CF/UNV) or 2-lamp operation
- 26W T4 DULUX D/E, T/E: 1-lamp (QTP2x26CF/UNV) or 2-lamp operation
- 32W/42W T4 DULUX T/E: 1-lamp (QTP2x26CF/UNV) or 2-lamp (QTP2x26/32/42CF/UNV M)
- 57W/70W T4 DULUX T/E: 1-lamp operation (QTP2x26/32/42CF/UNV M)
Product Features
Universal Compatibility
- Operates DULUX® D/E and T/E lamps at full lumen output
- Multi-lamp, multi-watt capability reduces inventory needs
- 120-277V universal input voltage
Advanced Technology
- PROStart programmed rapid start (100,000+ switching cycles)
- QUICKSENSE® end-of-lamp-life protection technology
- Dynamic sensing prevents false shutdowns
Installation Advantages
- Dual entry, color-coded connectors
- Wire-trap connectors for quick installation
- Low-profile, lightweight metal enclosure
Technical Specifications
Electrical Characteristics
- Input Voltage:
- 108-305V (±10% of 120-277V)
- Power Factor:
- >98% normal
- THD:
- <10%
- Frequency:
- 50/60 Hz
Performance
- Starting Method:
- Programmed Rapid-Start
- Circuit Type:
- Series
- Lamp Frequency:
- >40KHz
- Lamp CCF:
- <1.7
Environmental
- Temperature Range:
- -20°C to +75°C
- Sound Rating:
- Class A (quiet operation)
- PCB Content:
- None (Polychlorinated Biphenyl free)
- Warranty:
- QUICK 60+® comprehensive system warranty
Replacement Information
This modern electronic ballast replaces these discontinued Sylvania models:
- #51743 QTP 2x26/32/42CF/UNV BM
- #51773 QTP 2x26/32/42CF/UNV TM
- #51740 QTP 1x57CF/UNV BM
- #51800 QTP 1x57CF/UNV PM
Ideal Applications
- Recessed downlights
- Wall sconces
- Ceiling fixtures
- Retail lighting
- Hospitality lighting
- Institutional buildings
