Product Overview

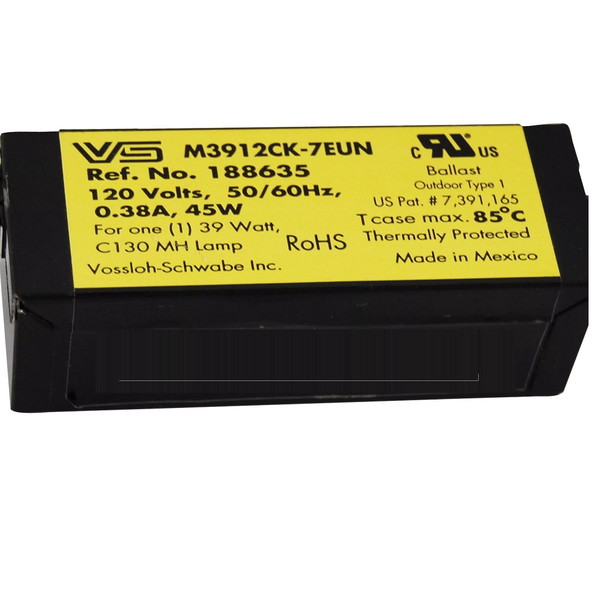

Universal M3912CK-7EUN M130 or C130 120V Electronic Metal Halide Ballast For 1- 39W Metal Halide Lamp
Product Details
- RoHs Compliant
- Resonance Start
- Ansi Code M130/C130
- Microprocessor controlled
- Active power factor correction
- Voltage : 120V, +/-10%, 50/60Hz
- Universal Order Code 188635
- DIM: (L) 3.85in (W) 1.32in x (H) 1.22in
- 5-Lead Wires( Black, White, Green,Blue, Red)
- RoHS Compliant
Additional Information
- Energy Efficient
- Greater than 20% increase in efficiency
- Lowers lighting operation costs
- Full Light Output
- Provides same light levels as magnetic ballasts being replaced
- Quiet Operation
- Significantly quieter than magnetic ballasts
- High Frequency Operation
- No lamp flickering
- Light Weight - Low Profile Case
- Simplifies transportation & installation
- Less interference with ballast channel cover during replacement
- Slimline Ballasts Feature Parallel Lamp Operation
- When one lamp fails, other lamp remains lit
- Instant start electronic ballast for long lamp starting cycles and low initial cost
- UL Type 1 Outdoor
Universal Lighting Technologies Micro Series
The introduction of the smallest eHID ballasts in the market was coordinated with the launch of the new miniaturized capsule MH lamps enabling the ultimate luminaire design flexibility. Extremely compact and aesthetically pleasing, luminaire designs are approaching the form factor and size of low voltage halogen system
Performance:
• EOL Protection
• Meets ANSI Standard C82.14-2006
• Meets ANSI Standard C62.41-1991
• Meets FCC Part 18C for EMI & RFI (non-consumer)
Safety:
• No PCBs
• Thermal Protection
• C/UR/US recognized component
Each lamp's lead wires must be run in a separate minimum 1/2" ID conduit from the input
leads to achive good EMI performance and maximum remote capabilities. Individual ,
unbundled lead wires must be used for extension wiring using wire types SF-2 or SFF-2
or equivalent. Power cords and MC cables are not acceptable extension wiring methods.
