Product Overview

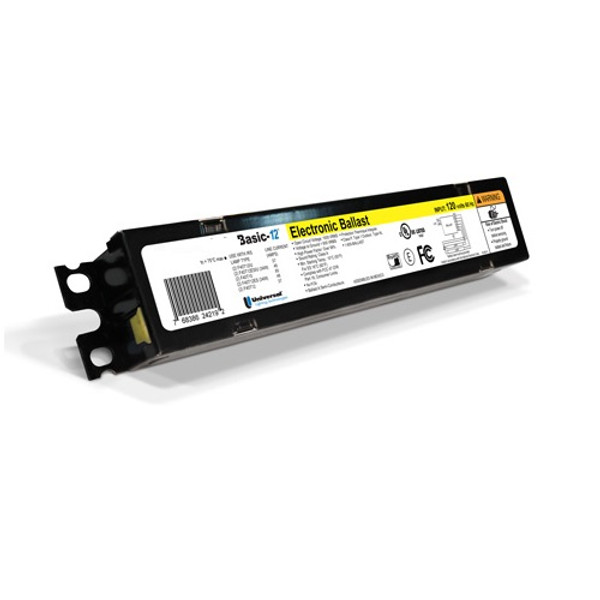

Universal B432PUNVHE-A000I 4-Lamp 120-277V 50/60hz High frequency electronic Instant Start Ballast
Operates the Following Lamp Types
- (3-4) F17T8/ECO
- (3-4) F25T8/ECO
- (3-4) F32T8/25W
- (3-4) F28T8/28W
- (3-4) F32T8
- (3) FO40T8
- (4) F25T12
- Also Suitable For Equivalent U-Bend Fluorescent T8 Lamps
Additional Information: Universal Lighting Technology Triad B432IUNVHP-A000I Parallel Instant Start High Performance low profile ballasts with THD<10% offer the convenience of universal input voltage (108 - 305 volts) ensuring you have the right voltage ballast, and a low profile design for greater flexibility in light fixture design.Will easily retrofit any T12 into a T8 fixture Also it's UL Listed for wet or damp locations & approved by the NEMA Premium Electronic Ballast program
- High performance electronic ballast for all general fluorescent applications
- Instant start electronic ballast for long lamp starting cycles and low initial cost
- Multi-Voltage Technology handles voltage from 120 to 277V
- Light-weight, Low Profile Housing (Dim:9.5”L x 1.7”W x 1.18”H)
- Parallel Circuitry: keeps remaining lamps lit if one or more go out
- Line Voltage: 108vac - 305vac, 50/60Hz
- Manufactured in North America
- Meets ANSI Standard C82.11-1993
- Normal Ballast Factor < 10% THD
- Sound Rating A (20-24 decibels)
- Parallel Instant Start
- RoHs Compliant
- UL Type 1 Outdoor
