Product Overview

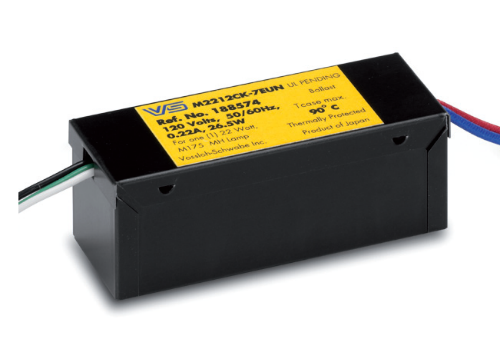

Universal 22W M175 1-Lamp 120V Electronic Metal Halide Ballast
- (1) 22W Ceramic Metal Halide Lamp
- Ansi Code M175/C175
- Voltage : 120V, +/-10%, 50/60Hz
- Microprocessor controlled
- Meets ANSI Standard C82.14-2006
- Meets ANSI Standard C62.41-1991
- DIM: (L) 2.99in (W) 1.3in x (H)1.1in
- No feet Side lead exit
- 5-Lead Wires( Black, White, Green,Blue, Red
- RoHS Compliant
- Spec Sheet
Additional Information
- Energy Efficient
- Greater than 20% increase in efficiency
- Lowers lighting operation costs
- Full Light Output
- Provides same light levels as magnetic ballasts being replaced
- Quiet Operation
- Significantly quieter than magnetic ballasts
- High Frequency Operation
- No lamp flickering
- Light Weight - Low Profile Case
- Simplifies transportation & installation
- Less interference with ballast channel cover during replacement
- Slimline Ballasts Feature Parallel Lamp Operation
- When one lamp fails, other lamp remains lit
- Instant start electronic ballast for long lamp starting cycles and low initial cost
- RoHs Compliant
- UL Type 1 Outdoor
