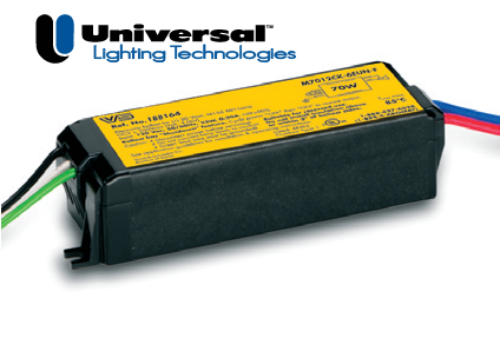

Universal M7012CK-6EUN-F

Vossloh Schwabe M7012CK6EUNF 120V 70W Metal Halide Electronic Feet Mount & Side lead exit Mini Slim Ballast  Operates  (1) 70W Ceramic Metal Halide Lamp

Product Details

• Resonance Start
• RoHS Compliant
• Active power factor correction
• Ansi Code M98,M139, or M143
• Microprocessor controlled

• (F) Feet mount (Side lead exit)
• Universal Order Code 188164.02

• Voltage : 120V  +/-10%, 50/60Hz
• DIM: ((L) 5.51in (W) 1.74in x (H) 1.18in
• 5-Lead Wires (Black, White, Green,Blue, Red)
• Spec Sheet

Additional Information

• Energy Efficient
• Greater than 20% increase in efficiency
• Lowers lighting operation costs

• Full Light Output
• Provides same light levels as magnetic ballasts being replaced
• Quiet Operation

• Significantly quieter than magnetic ballasts
• High Frequency Operation
• No lamp flickering
• Light Weight - Low Profile Case
• Simplifies transportation & installation
• Less interference with ballast channel cover during replacement
• Slimline Ballasts Feature Parallel Lamp Operation
• When one lamp fails, other lamp remains lit
• Instant start electronic ballast for long lamp starting cycles and low initial cost

• RoHs Compliant

• UL Type 1 Outdoor


Performance:

• EOL Protection
• Meets ANSI Standard C82.14-2006
• Meets ANSI Standard C62.41-1991
• Meets FCC Part 18C for EMI & RFI (non-consumer)

Safety:

• No PCBs
• Thermal Protection
• C/UR/US recognized component


Each lamp's lead wires must be run in a separate minimum 1/2" ID conduit from the input
leads to achive good EMI performance and maximum remote capabilities. Individual ,
unbundled lead wires must be used for extension wiring using wire types SF-2 or SFF-2
or equivalent. Power cords and MC cables are not acceptable extension wiring methods.

 Cross Reference

• Aromat M7012CK-6EUN-F
• Hatch MC70-1-F-UNNU
• Philips Advance IMH-70-E-LF
• Sylvania QTP1x70MH UNV SQ F
• Vossloh Schwabe M7012CK-6EUN-F
