Sylvania 20906 FP54/841/HO/ECO

(No reviews yet) Write a Review
Was: $6.97
Now: $4.37
SKU:
SKFB20906
UPC:
46135209062
Condition:
New
Availability:
In Stock
Shipping:
$14.97 (Fixed Shipping Cost)

Product Overview

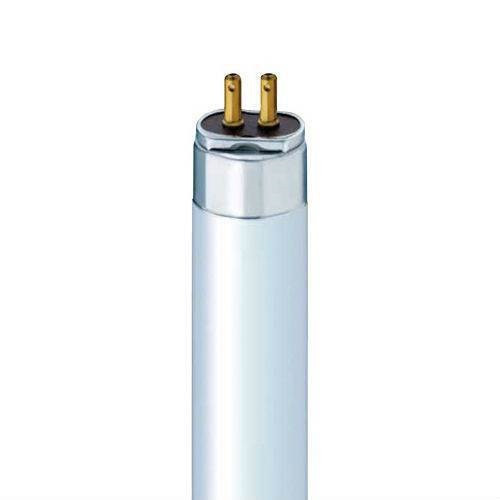

Sylvania 20906 FP54-4100K Pentron 54 Watt T5HO  Cool White Fluorescent Ecologic Lamp For 4ft High-bay Fixture in Offices, Warehouse

  • CRI 85
  • Initial Lumens 5000lm
  • Mean Lumens 4650lm
  • UPC 046135209062
  • MOL&nbsp 45.8in x Dia 5/8in
  • G5 Miniature Bi-pin Base
  • Sylvania Order Code 20906
  • Rated Avg. Life 30,000-36,000hrs
  • Color Temp 4100K (841) Cool White
  • TCLP Compliant (Lower Disposal Cost)
  • Sylvania 20906 Replaces Sylvania 21140
  • Dimmable With Appropriate Dimming Ballast
  • Used In T5 Highbay,T5 Fluorescent Strips, Retrofit-Projects
  • Spec Sheet

Additional Information

Sylvania Pentron HO 54W 4100K Ecologic T5 linear fluorescent lamps Produces A Color White Color Temp & offer a high quality lighting solution for applications Where aesthetics and/or high lumen output and long life are important. With a small lamp profile of 5/8" and lumen output that is almost twice that of T8 fluorescent lamps, These lamps offer the prospect of small luminaire designs capable of delivering illuminance levels satisfying General ambient lighting requirements ranging from general office and classrooms to industrial manufacturing

  • 95% lumen maintenance
  • Peak lumen output at 35°C (95°F)
  • TCLP and RoHS compliant
  • Lead free glass
  • Greater luminaire design flexibility.
  • PENTRON ECO lamps are about 2" shorter than T8 & T12 Bi-Pin lamps.
  • Miniature Bi-Pin bases will not install into T8 & T12 sockets.
  • Miniature Bi-Pin bases require UL Listed 600 Volt rated sockets.
  • Requires high frequency programmed rapid start electronic ballasts for T5s
  • equipped with end-of-life sensing circuit.
  • PENTRON ECO operates at same current for uniform color and brightness
  • between nominal 2', 3', 4', and 5' lengths. 6.
  •  Apply thermal factor in calculations for use in exterior or unheated applications.

Recommend Replacement Ballast For FP54-841-HO-

  • Advance ICN-2S54-90C
  • Advance ICN-4S54-90C
  • GE GE454MVPS90-E
  • GE GE254MVPS90-F
  • GE B239PUNV-DOG1C
  • Universal B254PUNV-D
  • Universal B454PUNV-E
  • Sylvania QTP2x54T5HOUNVPSN
  • Sylvania QTP4x54T5HO/UNV PSN
