Product Overview

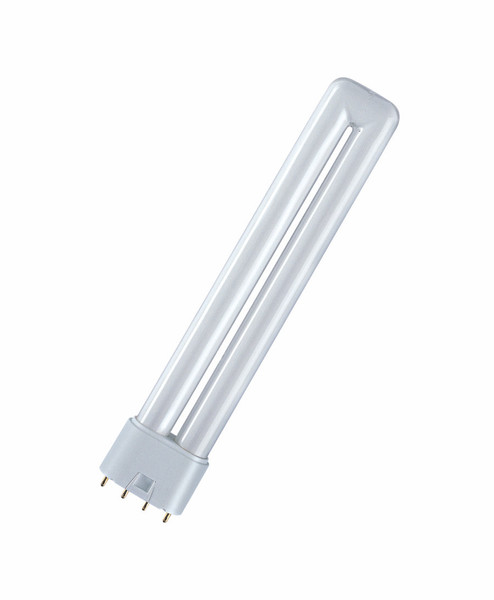

Osram 55 Watt Twin-Tube Lumilux De Luxe Warm White Compact Fluorescent 4-Pin 2G11 Lamp
- Average Rated Life 12,000hrs
- Base 2G11 (4-Pin)
- Twin Tube Bulb (T5 x 2)
- Color Rendering Index (CRI) 90..99
- Family Brand Name Lumilux De Luxe L
- Maximum Overall Length MOL 22.4in
- Maximum Overall Length - MOL 535mm
- Diameter 0.630in or 16mm
- Nominal Wattage 55W
- Color Temperature/CCT 3000k (930) Lumilux De Luxe Warm White
- Ordering Info. Dulux Lumilux L 55 W 930 Made In Italy 10/CS
- Could Be Used With Magnetic, Electronic, Or Dimming Ballast
Cross Reference
- Philips Master PL-L 55W/930
- Sylvania Dulux L 55W/32
Replacement 55W 2G11 Ballast
- Advance REL-2TTS50-35I
- Advance ICN-2S54
- GE #72279 GE254MVPS-D
- Sylvania QTP2x54T5HOUNVPSN
- Universal B254PUNVHB-D
Additional Information
Approximate initial lumens after 100 hours operation. Minimum starting temperature is a function of the ballast; consult the ballast manufacturer. There is a NEMA supported, industry issue where T2, T4, and T5 fluorescent and compact fluorescent lamps operated on high frequency ballasts may experience an abnormal end-of-life phenomenon. This end-of-life phenomenon can result in one or both of the following: 1. Bulb wall cracking near the lamp base. 2. The lamp can overheat in the base area and possibly melt the base and socket. NEMA recommends that high frequency compact fluorescent ballasts have an end-of-life shutdown circuit which will safely and reliably shut down the system in the rare event of an abnormal end-of-life failure mode described above. The final requirements of this system are yet to be defined by ANSI. For additional information refer to NEMA papers on their WEBSITE at www.NEMA.org. The life ratings of fluorescent lamps are based on 3 hr. burning cycles under specified conditions and with ballast meeting ANSI specifications. If burning cycle is increased, there will be a corresponding increase in the average hours life. Rule of Thumb for Compact Fluorescent Lamps: Divide wattage of incandescent lamp by 4 to determine approximate wattage of compact fluorescent lamp that will provide similar light output.
