Product Overview

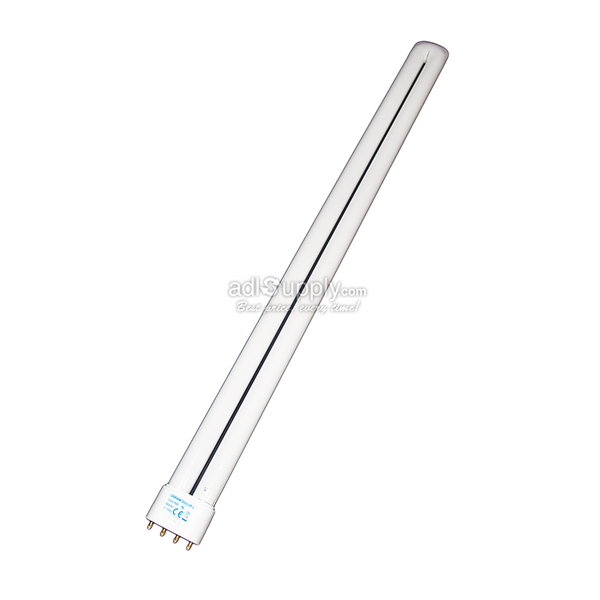

Osram Lumilux De Luxe Cool White 40 Watt 2G11 Compact Fluorescent Lamp
- Abbrev. With Packaging Info. Dulux Deluxe L 40W 940 10/Case
- Average Rated Life 20,000hrs
- Base 2G11 (4-Pin)
- Bulb (T5)
- Color Rendering Index (CRI) 90..99
- Color Temperature/CCT 4000k (940) Lumilux De Luxe Cool White
- Family Brand Name Dulux Lumilux De Luxe L
- ILCOS #FSD-40/94/1A-2G11
- Initial Lumens 2900
- Maximum Overall Length MOL 21.4in
- Maximum Overall Length - MOL 417.5mm
- Diameter 0.630in
- Diameter 16in
- Nominal Wattage 40W
- Could Be Used With Magnetic, Electronic, Or Dimming Ballast
- Sold Case/10
Cross Reference
- Philips Mastercolor PL-L 40W/940/4P
Replacement 40W 2G11 Ballast
- Advance ICN-2TTP40-SC
- Sylvania QHE2X40DL-UNV-ISN-SC
- Sylvania 51833 QTP2x26CF/UNV DM
- Universal Triad C240PUNVHP-B
| Approximate initial lumens after 100 hours operation. Minimum starting temperature is a function of the ballast; consult the ballast manufacturer. There is a NEMA supported, industry issue where T2, T4, and T5 fluorescent and compact fluorescent lamps operated on high frequency ballasts may experience an abnormal end-of-life phenomenon. This end-of-life phenomenon can resultin one or both of the following: 1. Bulb wall cracking near the lamp base. 2. The lamp can overheat in the base area and possibly melt the base and socket. NEMA recommends that high frequency compact fluorescent ballasts have an end-of-life shutdown circuit which will safely and reliably shut down the system in the rare event of an abnormal end-of-life failure mode described above. The final requirements of this system are yet to be defined by ANSI. For additional information refer to NEMA papers on their WEBSITE at www.NEMA.org. The life ratings of fluorescent lamps are based on 3 hr. burning cycles under specified conditions and with ballast meeting ANSI specifications. If burning cycle is increased, there will be a corresponding increase in the average hours life. Rule of Thumb for Compact Fluorescent Lamps: Divide wattage of incandescent lamp by 4 to determine approximate wattage of compact fluorescent lamp that will provide similar light output. |
