Product Overview

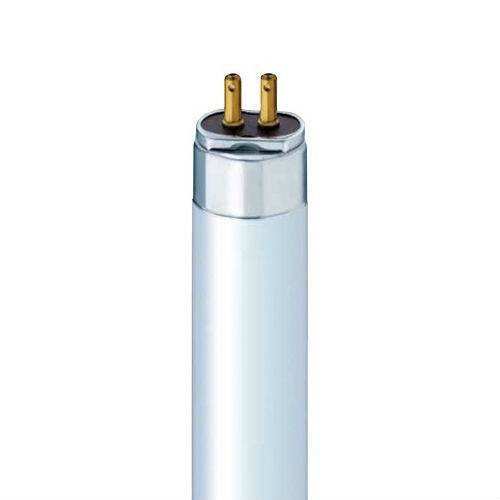

Sylvania 20929 Pentron HO 3500K 24W High Output Fluorescent Linear T5 Ecologic 22in Linear Lamp
Product Details
- CRI 85
- (G5) Miniature Bipin Base
- Color Temp 3500k (835) Natural White
- MOL 22.17in x Dia (5/8in)
- Rated Avg. Hours 25,000hrs
- Initial Lumens @ 35C 2000 lm
- Mean Lumens @ 35C 1860 lm
- SOLD 40/CASE Please call to order less
- UPC Order Code #046135209291
- Spec Sheet
Additional Information
- 95% lumen maintenance
- Peak lumen output at 35°C (95°F)
- TCLP and RoHS compliant
- Lead free glass
- Greater luminaire design flexibility.
- PENTRON ECO lamps are about 2" shorter than T8 & T12 Bi-Pin lamps.
- Miniature Bi-Pin bases will not install into T8 & T12 sockets.
- Miniature Bi-Pin bases require UL Listed 600 Volt rated sockets.
- Requires high frequency programmed rapid start electronic ballasts for T5s
- equipped with end-of-life sensing circuit.
- PENTRON ECO operates at same current for uniform color and brightness
- between nominal 2', 3', 4', and 5' lengths. 6.
- Apply thermal factor in calculations for use in exterior or unheated applications.
| Sylvania Pentron HO Ecologic T5 linear fluorescent lamps offer a high quality lighting solution for applications Where aesthetics and/or high lumen output and long life are important. With a small lamp profile of 5/8" and lumen output that is almost twice that of T8 fluorescent lamps, These lamps offer the prospect of small luminaire designs capable of delivering illuminance levels satisfying General ambient lighting requirements ranging from general office and classrooms to industrial manufacturing |
