Product Overview

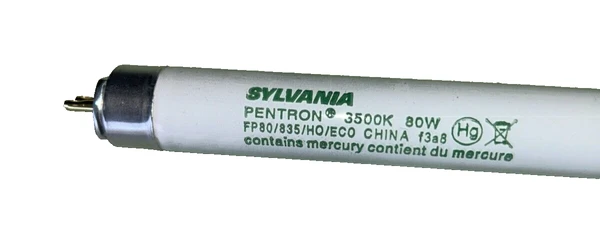

Sylvania 20936 Pentron ECO 3500K 80 Watt High Output Fluorescent T5 High Performance Lamp
Product Details
- CRI 85
- (G5) Miniature Bipin Base
- 93% Lumen Maintenance
- MOL 57.05in x Dia (5/8in)
- Color Temp 3500k (835) Natural White
- Rated Avg. Hours 25,000-30,000hrs
- Spec Sheet
Additional Information
PENTRON HO ECOLOGIC T5 linear fluorescent lamps offer a high quality lighting solution for applications
Where aesthetics and/or high lumen output and long life are important.
With a small lamp profile of 5/8" and lumen output that is almost twice that of T8 fluorescent lamps,
These lamps offer the prospect of small luminaire designs capable of delivering illuminance levels satisfying
General ambient lighting requirements ranging from general office and classrooms to industrial manufacturing
- High Performance T5 HO Lamps
- Up to 104 LPW
- 95% lumen maintenance
- Peak lumen output at 35°C (95°F)
- TCLP and RoHS compliant
- Lead free glass
- Greater luminaire design flexibility.
- PENTRON ECO lamps are about 2" shorter than T8 & T12 Bi-Pin lamps.
- Miniature Bi-Pin bases will not install into T8 & T12 sockets.
- Miniature Bi-Pin bases require UL Listed 600 Volt rated sockets.
- Requires high frequency programmed rapid start electronic ballasts for T5s equipped with end-of-life sensing circuit.
- PENTRON ECO operates at same current for uniform color and brightness between nominal 2', 3', 4', and 5' lengths. 6.
- Apply thermal factor in calculations for use in exterior or unheated applications.
