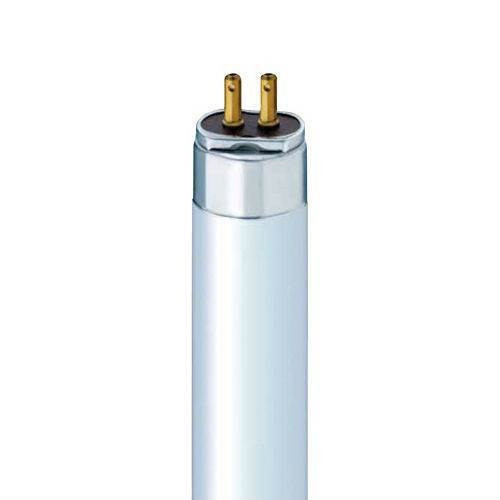

Sylvania 6500K 28W Linear 45.8in Fluorescent Pentron HE ECO T5 Lamp

Product Overview

Sylvania 20990 High Efficiency Pentron 6500K 28 Watt Fluorescent T5 ECO Lamp

Product Details

CRI 85
(G5) Miniature Bipin Base
Color Temp 6500k Daylight
MOL 45.236in X Dia 17mm (5/8in)
Rated Avg. Hours 25,000hrs
Initial Lumens at 25C 2400 lm
Initial Lumens at 35C 2750 lm
Mean Lumens at 25C 2232lm
Mean Lumens at 35C 2558lm
UPC Code #046135209901
Sold 40/Case Call To Order less than a case
Spec Sheet

Additional Information

Sylvania Pentron HO Ecologic 28W 6500K 4Ft lamps offer a Very Bright Daylight high quality lighting solution for applications where aesthetics and/or high lumen output and long life are important. With a small lamp profile and lumen output that is almost twice that of T8 fluorescent lamps, these lamps offer the prospect of low profile luminaire designs capable of delivering illuminance levels satisfying general ambient lighting requirements ranging from general office and classrooms to industrial manufacturing.

High Performance T5 lamps
Peak lumen output at 35°C (95°F)
TCLP and RoHS compliant
Lead free glass
Greater luminaire design flexibility.
PENTRON ECO lamps are about 2" shorter than T8 & T12 Bi-Pin lamps.
Miniature Bi-Pin bases will not install into T8 & T12 sockets.
Miniature Bi-Pin bases require UL Listed 600 Volt rated sockets.
Requires high frequency programmed rapid start electronic ballasts for T5s
equipped with end-of-life sensing circuit.
PENTRON ECO operates at same current for uniform color and brightness
between nominal 2', 3', 4', and 5' lengths. 6.
Apply thermal factor in calculations for use in exterior or unheated applications.

Approximate initial lumens after 100 hours operation. The life ratings of fluorescent lamps are based on 3 hr. burning cycles under specified conditions and with ballast meeting ANSI specifications. If burning cycle is increased, there will be a corresponding increase in the average hours life. Lumen output and life rated on high frequency operation. Minimum starting temperature is a function of the ballast; consult the ballast manufacturer. There is a NEMA supported, industry issue where T2, T4, and T5 fluorescent and compact fluorescent lamps operated on high frequency ballasts may experience an abnormal end-of-life phenomenon. This end-of-life phenomenon can resultin one or both of the following: 1. Bulb wall cracking near the lamp base. 2. The lamp can overheat in the base area and possibly melt the base and socket. NEMA recommends that high frequency compact fluorescent ballasts have an end-of-life shutdown circuit which will safely and reliably shut down the system in the rare event of an abnormal end-of-life failure mode described above. The final requirements of this system are yet to be defined by ANSI. For additional information refer to NEMA papers on their WEBSITE at www.NEMA.org. SYLVANIA ECOLOGIC fluorescent lamps are designed to pass the Federal Toxic Characteristic Leaching Procedure (TCLP) criteria for classification as non-hazardous waste in most states. TCLP test results are available upon request. Lamp disposal regulations may vary, check your local & state regulations. For more information, please visit www.lamprecycle.org
