Product Overview

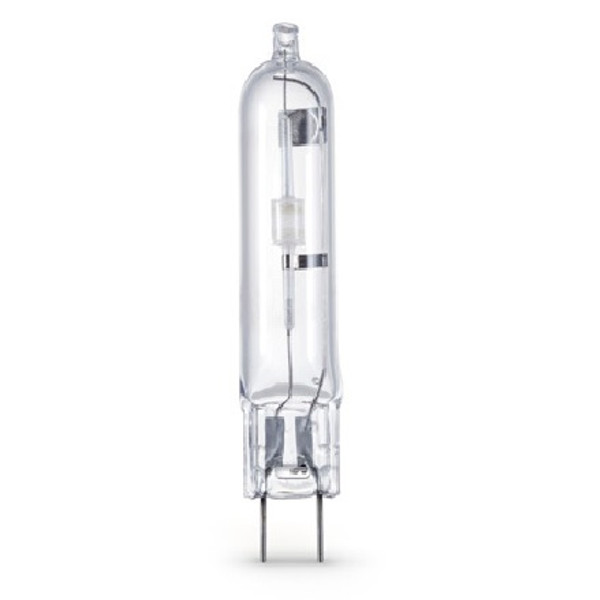

GE ConstantColor CMH G8.5 70W 3000K UV Control Ceramic Metal Halide T4.5 Lamp
- Lamp Wattage 70W.
- Bulb Designation T4.5
- Base Type G8.5 Bi-Pin
- Burn Position Universal
- Rated Life 15,000
- Initial Lumens 6200
- Color Temp CCT 3000K
- GE Order Code 43274
- UV Control
- CRI 80 (+)
- Volts 90
- Max. Base Temp. 250º
- Max. Bulb Temp. 400º
- LCL 30mm ± 2mm
- MOL 3.37in x DIA 0.56
- Universal Burn Position
- Fixture Requirement Enclosed
- Max. Fixture Voltage-Rise 5 Volts
- Ballast Requirement ANSI C139
Additional Information
- Highly efficient Reduce energy costs by $33.00-$260.00 per lamp*
- 4 times more lumens per watt than comparable incandescent or halogen lamps
- Color uniformity lamp-to-lamp ConstantColor CMH-GU6.5 lamps provide a consistent "white look"
- for color-critical applications such as retail display Excellent color rendering Up to 90 CRI
- for setting the desired look for the application.
- Long life Up to 12,000 hour rated life provides for extended relamp cycles and reduced maintenance costs
- Point source of light Compact quartz envelope allows for terrific fixture optics to maximize system efficiency
- Replacement 70W C139 Ballast & G8.5 Sockets Available
Cross Refernence
- Philips #373738 CDM70/TC/830
- Osram HCI-TC 70/830 WDL PB G8.5
- Sylvania #64825 MC70TC/U/G8.5/930PB
- ILCOS MT/UB-70/30/1B-H/E-G8.5-13/57
R Warning:
This lamp can cause serious skin burn and eye inflammation from shortwave ultraviolet radiation
if outer envelope of the lamp is broken or punctured, and the arc tube continues to operate.
Do not use where people will remain for more than a few minutes unless adequate shielding
or other safety precautions are used. Certain types of lamps that will automatically
extinguish when the outer envelope is broken or punctured are commercially available.
