Product Overview

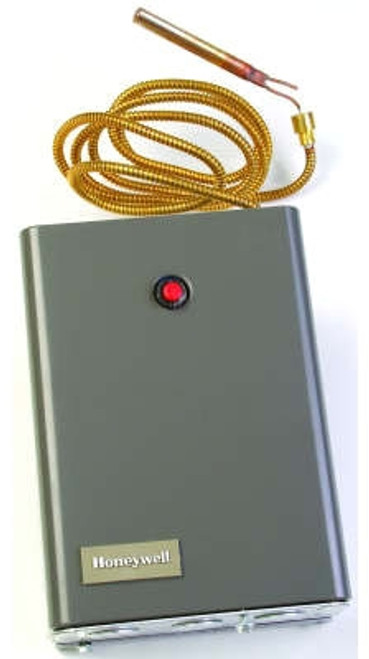

HONEYWELL HONR8182D1079 TRIPLE AQUASTAT RELAY LESS WELL, VERTICAL MOUNT
Part Description:
- Aquastat Controller
- Type Vertical Well Immersion
- Temperature Range 130 to 240 Deg F (High Limit), 110 to 220 Deg F (Low Limit)
- Maximum Temperature Rating 250 Deg F (Element)
- Contact Rating 4.4 Amp at 120 Volt AC Full Load/26.4 Amp at 120 Volt AC Locked Rotor (Burner), 360 Volt Amp (Ignition), 0.2 Amp (Anticipator Setting), 9 Watt (Power Consumption)
- Contact Configuration SPST
- Connection Type 1/2 Inch Conduit
- Application Oil Fired, Hydronic Heating System
- Approval UL, CSA
- Overall Dimension 5-1/4 Inch Width x 3-7/16 Inch Depth x 7-1/8 Inch Height
- Differential Temperature Rating 10 Deg F (Fixed), 10 to 25 Deg F (Low Limit/Circulator)
- Maximum Safe Operating Pressure 200 PSI (Immersion Well), 100 PSI (Direct Immersion)
- Insulation Depth 1-1/2 Inch
- Humidity 0 to 95 Percent Relative, Non-Condensing
- Timing 45 Second (Safety Switch)
- Includes Stop Dial, Heat Conductive Compound
Features / Benefits
- Use in Intermittent Ignition Applications
- Capable of Zone Control with Zone Valves
- Circulator Zone Control with Zc and Zr Terminals on R8182D,E,H,J 8 Flame Failure During the Running Cycle Results in a 45 Second Attempt to Restart
- If Unsuccessful, Safety Shut-Off Occurs, Requiring Manual Reset before Burner Can be Restarted
- R8182D,E,F Mount Directly on Burner
- R8182H,J Mount on 4 X 4 in Junction Box and Include 5 Foot (1.5 Meter) Armored Capillary with Remote Sensor
- C554A Cadmium Sulfide Flame Detector and a 24 Volt AC Thermostat Required
