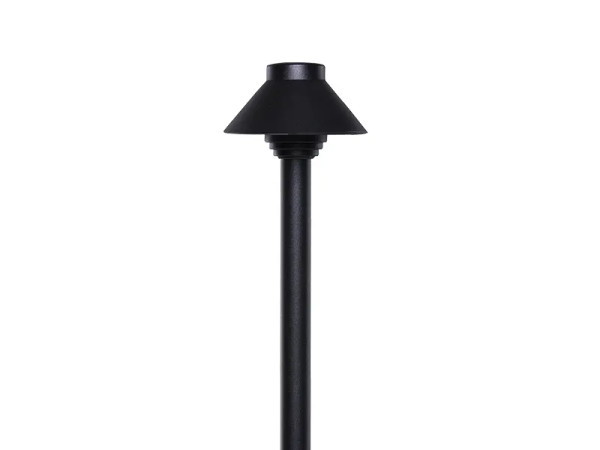

913028 PSH040-TB-15 Straight Path Light-4" Hat-15" Stem-Textured Black-Fixture Only - Low Voltage Architectural

• Pre-wired with 36" of 18-2, UL listed, 105°C, SPT-1 lead wire
• 15" Stem, 5 1/2" diameter architectural-grade die cast
• Rated 12 Volt
• Ceramic G4 bi-pin socket with nickel contacts
• Use T3-G4 bi-pin – 20W maximum
• Single-piece 8" black PVC in-ground mounting stake with ½" NPT hub included with the fixture

Housing:

•  Architectural-grade die cast aluminum to withstand outdoor environments
•  Underside of 5½" diameter top is coated with white reflective paint for optimum output and diffusion
•  Stepped, threaded collar provides a tool-less attachment to the stem and facilitates easy relamping
•  A clear, 4 mm thick glass lens protects the lamp

Stem:

•  7/8" diameter architectural-grade die cast aluminum stem provides solid, stable mounting
•  12", 15", and 18" stems available
•  ½" NPT threaded at both ends

Finish:

•  DuPont powder coat provides UV-resistance and protects the fixture from salt spray induced corrosion
•  Available in Textured Black, Textured Bronze, or Textured Verde finish

Socket:

•  Ceramic G4 bi-pin socket with nickel contacts
•  Heat resistant Teflon-coated wire leads
•  UL listed

Lamp (not included):

•  T3-G4 bi-pin – 20W maximum
•  Assortment of LED, energy saving, and extended life lamps are available

Mounting:

• Single-piece 8" black PVC in-ground mounting stake with ½" NPT hub included with the fixture

Electrical:

• 12 Volt system
• Pre-wired with 36" of 18-2, UL listed, 105°C, SPT-1 lead wire
• Two King® DryConn™ waterproof connectors that enable easy wiring are included with the fixture

Certifications:

• ETL Listed to UL Standard 1838 and CSA C22.2 No. 12-1982

Warranty:

• 5-year warranty on textured finishes, lifetime on antique
