Product Overview

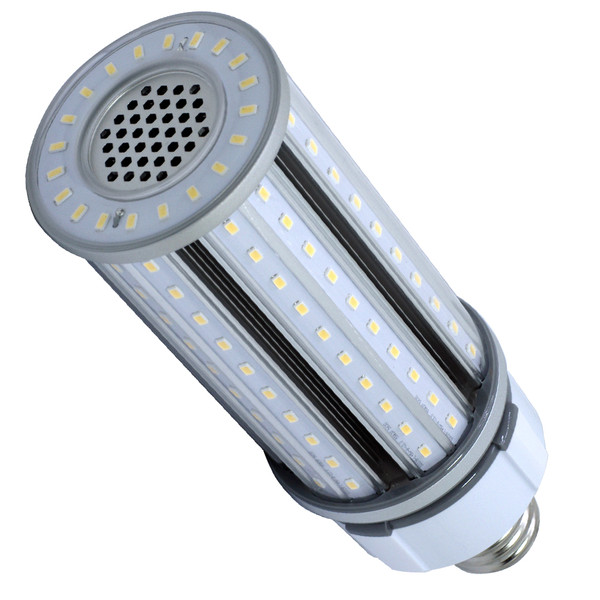

HALCO 84014 HID54/840/MV2/EX39/LED HID RETROFIT BYPASS 54W 4000K NON-DIMMABLE 120-277V EX39 ProLED
SPECIFICATION
| Applications | POST TOP, WALL PACK, LOW BAY |
| Average Life (Hrs) | 50,000 |
| Base | EX39 |
| Beam Angle | OMNIDIRECTIONAL |
| Brand | ProLED |
| CRI | 82 |
| CSA | No |
| Color Temperature | 4000 |
| DesignLights Consortium | No |
| Dimmable | No |
| ENERGY STAR | No |
| Equivalent Wattage | 250 |
| HTS code | 8539500090 |
| Initial Lumens | 7020 |
| Inner Carton Quantity | 1 |
| Input Current (Amps) | 0.6 |
| Input Frequency (Hz) | 60 |
| Markets | COMMERCIAL, INDUSTRIAL |
| Master Carton Quantity | 16 |
| Maximum Overall Diameter | 3.43 |
| Maximum Overall Length | 10.79 |
| Nominal Length | 10.79 |
| Operating Position | UNIVERSAL |
| Prod Code | HID54/840/MV2/EX39/LED |
| Product Category | LED |
| Product Description | LED HID RETROFIT BYPASS 54W 4000K NON-DIMMABLE 120-277V EX39 ProLED |
| Product Number | 84014 |
| SS BUY PKG | 16 |
| Voltage (V) | 120-277 |
| Warranty (Yrs) | 5 |
| Wattage (W) | 54 |
TECHNICAL
| Base Material | ALUMINUM |
| CEE High Performance | No |
| Circle E | No |
| ETL | No |
| Footnotes 1 | Non-Dimmable 120V-277V lamps should only be used on 120V-277 circuits. Not for use on dimmers, timing devices,photo sensors or occupancy sensors. |
| Footnotes 2 | Caution: Risk of electric shock. Never disassemble or modify the bulb, no user serviceable parts inside.To avoid burns, do not touch the bulb during operation and allow to cool completely after switching off. This device is not intended for use in emergency exit fixtures. This device complies with Part 18 of the FCC rules. This product may cause interference with other devices. If interference occurs, change the location of the products involved. |
| Footnotes 3 | Do not use where directly exposed to water. |
| Footnotes 4 | UL listed for enclosed fixtures |
| Footnotes 5 | Lamp is UL approved for damp locations. |
| IP Rating | 64 |
| Maximum Ambient Temperature (C) | 60C |
| Mercury | No |
| Mercury Content (Hg) | 0 |
| Minimum Starting Temperature (C) | -20C |
| NEMA Premium | No |
| Power Factor | 0.9 |
| Prod Code | HID54/840/MV2/EX39/LED |
| RoHS Compliant | Yes |
| SS BUY PKG | 16 |
| TCLP Compliant | No |
| UL | Yes |
| UNSPSC | 39112102 |
| UPC Code | 807154840144 |
| Warning 1 | Risk of electric shock |
| Warning 2 | Do not use where directly exposed to water |
| Warning 3 | Never disassemble or modify the bulb |
| Warning 4 | To avoid burns, do not touch the bulb during operation and allow to cool completely after switching off |
| Warning 5 | This device is not intended for use with emergency exit fixtures |
| Warning 6 | If this product causes interference with other devices, change the location of the products involved |
| Warning 7 | Wet location rated |
| Weight (lbs) | 2.14 |
| cETL | No |
| cUL | Yes |
