Product Overview

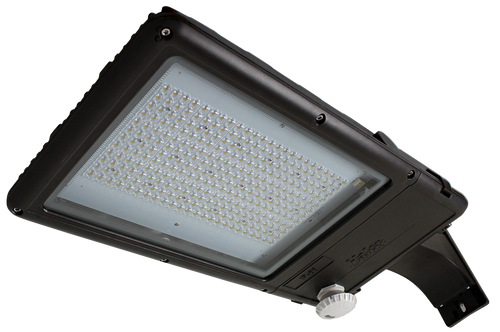

HALCO 10209 AL300/T3U50/7PRS AREA LIGHT 300 WATT 120-277V TYPE III 5000K 7-PIN RECEPTACLE SHORTING CAP
SPECIFICATIONS
| ANSI Code 1 | UL1598 |
| Applications | Outdoor Site & Area Lighting |
| Average Life (Hrs) | 100,000 |
| Beam Angle | TYPE Iii |
| Beam Spread | Type iii |
| Brand | HALCO |
| CRI | 70 |
| Color Temperature | 5000K |
| DesignLights Consortium | Yes |
| Dimmable | Yes |
| ENERGY STAR | No |
| Equivalent Wattage | 750W PSMH |
| Finish | Bronze |
| HTS code | 9405406000 |
| Initial Lumens | 36,556 |
| Input Current (Amps) | 4.1 |
| Input Frequency (Hz) | 50/60Hz |
| Lens | Borosilicate Glass |
| Markets | C&I, E-Commerce, Distribution |
| Prod Code | AL300/T3U50/7PRS |
| Product Category | LED FIXTURE |
| Product Description | AREA LIGHT, 300 WATT, 120-277V, TYPE III, 5000K, 7-PIN RECEPTACLE, SHORTING CAP |
| Product Number | 10209 |
| SS BUY PKG | 20 |
| Voltage (V) | 120-277V |
| Warranty (Yrs) | 5 |
| Wattage (W) | 294 |
TECHNICAL
| ETL | No |
| Footnotes 1 | This luminaire is intended for use on Class 2 circuits only. Use only on low voltage circuits with output ranges identified in specifications. Luminaire may be dimmed using analog dimmers and magnetic transformers. May not be compatible with all dimmers and/or transformers and should be tested in application for compatibility prior to full installations on circuits using such devices. |
| Footnotes 2 | Caution: Risk of electric shock. Never disassemble or modify the LED, no user serviceable parts inside. To avoid burns, do not touch the LED during operation and allow to cool completely after switching off. This device is not intended for use in emergency exit fixtures. This device complies with Part 18 of the FCC rules. This product may cause interference with other devices. If interference occurs, change the location of the products involved. |
| Footnotes 3 | Dimmable |
| Footnotes 4 | IP66 Rated |
| Footnotes 5 | Luminaire is UL Listed for Wet Locations |
| Footnotes 6 | Rated for Outdoor use only |
| IP Rating | IP66 |
| Maximum Ambient Temperature (C) | 50C(122F) |
| Minimum Starting Temperature (C) | -40C(-40F) |
| NEMA Premium | No |
| Power Factor | .9 |
| Prod Code | AL200/T5U50/7PRS |
| RoHS Compliant | Yes |
| SS BUY PKG | 20 |
| TCLP Compliant | No |
| UL | Yes |
| UNSPSC | 39112102 |
| UPC Code | 807154102099 |
| Warning 1 | Risk of Electric Shock |
| Warning 2 | Never disassemble or modify the LED. |
| Warning 3 | To avoid burns, do not touch the LED during operation and allow to cool completely after switching off |
| Warning 4 | Rated for Outdoor use only |
| Warning 5 | IP66 Rated: This luminaire is rated for outdoor use where exposed directly to water from rain or irrigation |
| Warning 6 | Luminaire is UL Listed for Wet Locations |
| Weight (lbs) | 28.20 |
| XREF Installation Sheet | |
| XREF Motion Sensor Sheet | |
| cUL | Yes |
