HALCO 90523 - LED 2X4 Flat Panel Controls Ready 3.5mm Receptacle Lumen & Color Selectable (3750-5625Lum 3500K 4000K 5000K) UNV 120-277V 0-10V Dimmable

- Controls Ready Panel

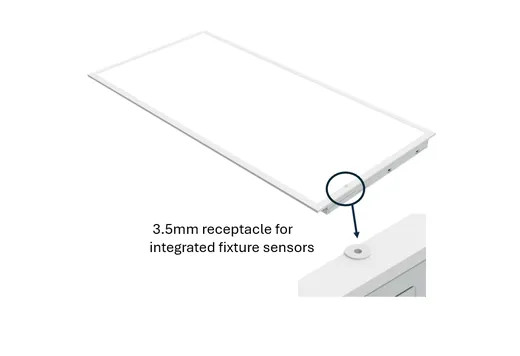

- Integral Fixture Sensors
- Selectable Lumen Output
- Selectable Color Temperatures
- DLC Premium Listed
Product Detail
- Brand Halco
- Color Selectable Yes
- Color Temp Selectable 3500K, 4000K or 5000K
- Dimmable Yes (0-10V)
- Input Frequency 50/60Hz
- Manufacturer Halco Lighting Technologies
- Market Commercial
- Size 2x4
- Technology LED
- UPC 807154905232
- Voltage 120-277V
- Wattage Selectable Yes (Lumen Select)
- Watts Selectable 20W, 25W or 30W
Performance
- Average Life 50,000
- Beam Angle 115
- Color Rendering Index (CRI) 80
- Lumens Selectable Lumens 2500/3700/4300
- Power Factor 0.9
- Warranty (years) 5
Packaging, Weights & Dimensions
- Master Carton Size 2
- Sold in Multiples of 1
- Inner Package Size 1
- Weight per Item 9
Construction
- Finish White
- Housing Material Steel Housing with Aluminum Frame. Optional extended junction box for additional wiring space (sold separately).
- Lens Polymethyl Methacrylate (PMMA)
- Mount Included No
- Mount Options Recessed, Surface
Controls
- Emergency Backup Available Yes
- Network Controls Available Yes
Certifications
- Certifications ETL Listed - DLC 5.1 Premium - Damp Location - IP20 Rated - IC Rated - Rohs - CA Title 29
- DLC Qualified DLC 5.1 Premium
- Environment (wet, damp, etc) Damp
- ETL Listed Yes
- IC Rated Yes
- IP Rating IP20
- RoHs Yes
- Title 24 Yes
