Product Overview

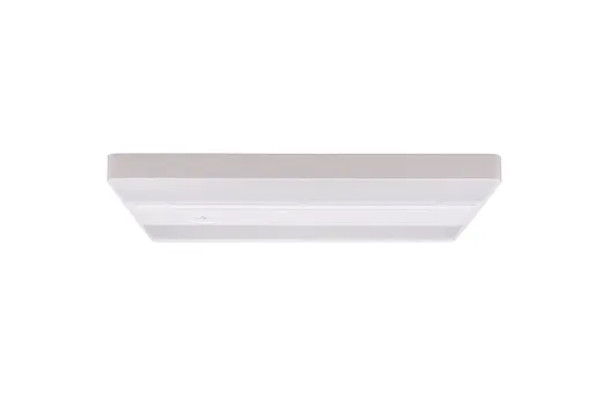

HALCO 36100 ProLED Select Compact Linear Highbay 1 Wattage Selectable 90W-110W-130W (12010-17588 Lumen) Color Selectable 4000K-5000K Universal Voltage 120-277VAC with Suspended Chain Mount
- Compact Design
- Excellent Light Distribution
- CCT and Wattage Selectable
- Lumen Range (12,010-45,237)
- Multiple Mounting Options
- Higher Wattage & Battery Backup available as Made to Order
Product Detail
- Amps 0.324-1.083
- Applications Distribution Warehouses, Retail, Big Box Stores, Gymnasiums, Manufacturing Facilities
- Brand Halco
- Color Selectable Yes
- Color Temp Selectable 4000K or 5000K
- Dimmable Yes (0-10V)
- Input Frequency 50/60Hz
- Manufacturer Halco Lighting Technologies
- Market Commercial, Industrial
- Technology LED
- UPC 807154361007
- Voltage 120-277V
- Wattage Selectable Yes
- Watts Selectable 90W, 110W or 130W
Performance
- Average Life 50,000
- Color Rendering Index (CRI) 80
- Lumens 12,010-17,588
- Power Factor 0.9
- Warranty (years) 5
Packaging, Weights & Dimensions
- Master Carton Size 1
- Sold in Multiples of 1
- Inner Package Size 1
- Product Length 14.96
- Product Width 11.81
- Weight per Item 5.73
Construction
- Finish White
- Housing Material Die-Cast Aluminum
- Lens Frosted Acrylic (Lens guard sold separately)
- Mount Included Suspended Chain Mount
- Mount Options Pendant Mount, Surface Mount
- Controls
- Emergency Backup Available Yes
- Integrated Controls Available Yes
- Network Controls Available No
Certifications
- Certifications UL Listed - DLC 5.1 Premium - IP20 - RoHs
- DLC Qualified DLC 5.1 Premium
- Environment (wet, damp, etc.) Damp or Dry
- IP Rating IP 20
- RoHs Yes
- UL Listed Yes
