Product Overview

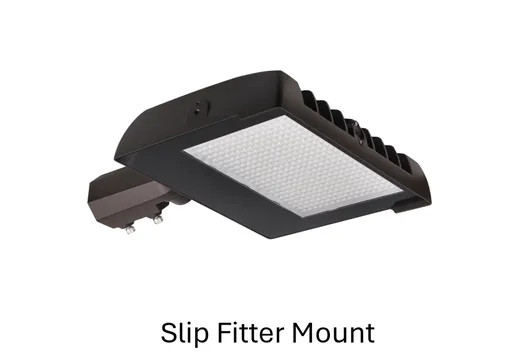

HALCO 22908- LED Sektor Floodlight Bronze with Lens Shift Technology Lumen Selectable (7800-14800Lm/60-80-100W) Color Selectable (3K-4K-5K) 120-277VAC 0-10V Dimming Adj Beam Angle 55 75 or 90 Deg 3Pin Receptacle Slip Fitter & Trunnion Mount
- Lens Shift technology (NEMA 6Hx7V or 6Hx6V or 7Hx6V)
- Wattage Selectable (50W-60W-80W)
- Color Selectable (3000K-4000K-5000K)
- NEMA 3pin recepticle
- Slipfitter for mounting on 2 3/8" tenon with 180° adjustability and trunnion mount
Product Detail
- Applications Distribution Commercial, Industrial, Retail, Storage, Utility, Shopping Centers, Task Lighting, Security Building lighting
- Brand Halco
- Color Selectable Yes
- Color Temp Selectable 3000K, 4000K or 5000K
- Dimmable Yes (0-10V)
- Input Frequency 50/60Hz
- Manufacturer Halco Lighting Technologies
- Market Commercial, Industrial
- Technology LED
- UPC 807154229086
- Voltage 277-480V
- Wattage Selectable YES
- Watts Selectable 60W, 80W or 100W
Performance
- Average Life 100,000
- Beam Angle 55-75-90 Deg
- Beam Type (Spread) Medium - Wide - Very Wide (Adj)
- Color Rendering Index (CRI) 80
- Light Dist. Type Lens Shift (NEMA 5, 6 or 7)
- Lumens 7,800-14,800
- Power Factor 0.9
- Warranty (years) 5
Packaging, Weights & Dimensions
- Box Height 15.6
- Box Length 14
- Box Width 5.7
- Master Carton Size 2
- Sold in Multiples of 1
- Inner Package Size 1
- Weight per Item 11.9
Construction
- Finish Bronze Power Coat
- Housing Material Die-Cast Aluminum Housing with Power Coat Finish
- Lens Clear Tempered Glass
- Mount Included Yes. Slip Fit & Trunnion in box
- Mount Options Slip fit for mounting on 2 3/8" tenon/pole with 180 adjustability or trunnion mount
Controls
- Integrated Controls Available Nema 3-Pin Receptacle
Certifications
- Certifications UL Listed - DLC 5.1 Premium - IP65 - FCC - Rohs
- DLC Qualified DLC 5.1 Premium
- Environment (wet, damp, etc) Wet Location
- IP Rating IP65
- RoHs Yes
- UL Listed Yes
