Product Overview

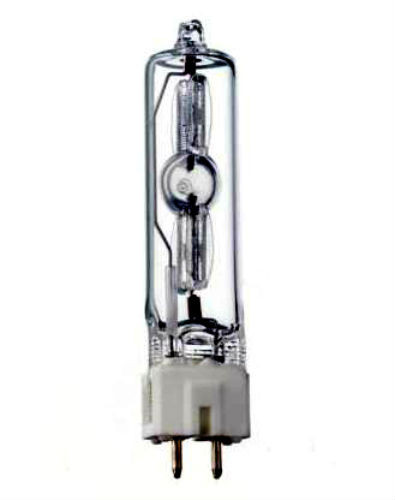

GE Showbiz Single Ended CSR 575W 7200k Quartz Metal Halide T9 Hot Restrike Lamp
- Prefocus Medium 2-Pin (GX9.5) Base
- Rated Voltage 97 Volt
- Initial Lumens 49000lm
- CIE X 0.323 COLOR Y 0.328
- MOL 4.92in
- Rated Avg.Life (Vert) 1000hrs
- Color Tempe 7200K
- Universal burning position
- GE Product Code #15378
- UPC 043168153782
- Spec Sheet
Additional Info
- Control Gear For use with AC magnetic and electronic gear
- Excellent color rendering Ra>90
- High CCT 5600- 6000K with superior color stability
- Universal burn position with hot restrike capability
- Dimmable with stable color
- High efficiency with excellent lumen maintenance
- Used For Indoor and outdoor TV and film production, stage,
- concerts, sporting events, photographic studios.
Lamp Safety and Operation
| Lamps operate at high internal pressures and should only be used in an enclosed fixture. Maximum allowable seal/pinch temperature is 350 oC - Operating lamp above permissible temperature will significantly affect performance and constitutes a safety hazard. - Luminaire cover lens should block UV radiation.Enclosed fixture only, per UL Standard 1572. In accordance to Federal Regulations 21 CFR 1040.30 the following notice applies: WARNING: This lamp can cause serious skin burn and eye inflammation from shortwave ultraviolet radiation if the outer envelope of the lamp is broken or punctured, and the arc tube continues to operate. Do not use where people will remain more than a few minutes unless adequate shielding or other safety precautions are used. Certain types of lamp that will automatically extinguish when the outer envelope is broken or punctured are commercially available. |
