Product Overview

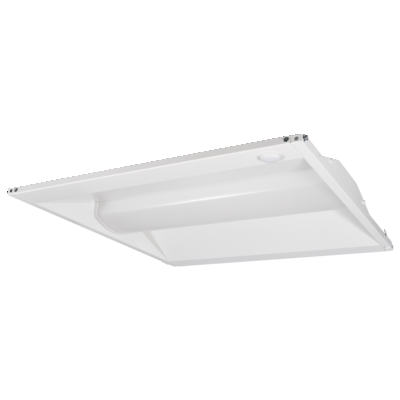

SYLVANIA UltraLED™ 2x2 Retrofit Door Kit – 18W, 4000K, Dimmable
UPC Code: 046135610561
Overview
The SYLVANIA UltraLED™ 2x2 Retrofit Door Kit offers an energy-efficient, quick-install solution for converting outdated fluorescent troffers to modern LED performance. Delivering 2400 lumens at just 18W, it produces bright, crisp 4000K light at 130 LPW efficacy. This retrofit fits into existing 2x2 housings and installs with a quick-disconnect plug. With a 100,000-hour lifespan and 0-10V dimming compatibility, it's a reliable upgrade for offices, retail, schools, and more.
Key Features
- High Efficiency: 2400 lumens at only 18W (130 LPW)
- Color Quality: Cool white 4000K, CRI ≥ 80
- Dimming Support: 0-10V dimmable
- Long Lifespan: 100,000 hours rated life (L70)
- Fast Installation: Retrofit design with quick-connect plug
- Warranty: 5-year manufacturer coverage
Product Specifications
| Attribute | Detail |
|---|---|
| Wattage | 18W |
| Voltage | 120-277V (UNV) |
| Lumens | 2400 lm |
| Efficacy | 130 LPW |
| Color Temperature | 4000K (Cool White) |
| CRI | ≥80 |
| Rated Life | 100,000 hours (L70) |
| Power Factor | ≥0.90 |
| THD | ≤ 20% |
| Dimming | 0-10V Compatible |
| Mounting | Retrofit (Recessed Troffer) |
| Housing | Steel |
| Finish | White |
| Connectors | Plug, Quick Disconnect |
| Dimensions | 23.82" x 23.86" x 2.4" |
| Weight | 3340g (7.36 lbs) |
Application & Use Cases
- Office Spaces
- Retail Locations
- Schools & Universities
- Hospitality Corridors
- General Purpose Commercial Lighting
Installation: Fits directly into existing 2x2 troffer housings—no full fixture removal required.
Certifications & Compliance
- cULus Listed for Damp Locations
- FCC Compliant
- RoHS Certified
- DLC 5.1 Qualified
- NLB Trusted Warranty Program
Traditional Lighting Comparison
| Traditional Setup | Fluorescent Wattage | LED Wattage | Energy Savings |
|---|---|---|---|
| 3 x 17W T8 (2x2) | 48W | 23W | 52% |
| 2 x U31W T8 (2x2) | 56W | 23W | 59% |
Helpful Tips
- Great for cost-effective energy upgrades in commercial buildings
- Compatible with many rebate programs and building codes
- Pairs well with dimmers and occupancy sensors
- Helps meet energy code requirements (e.g., Title 24, LEED)
