Product Overview

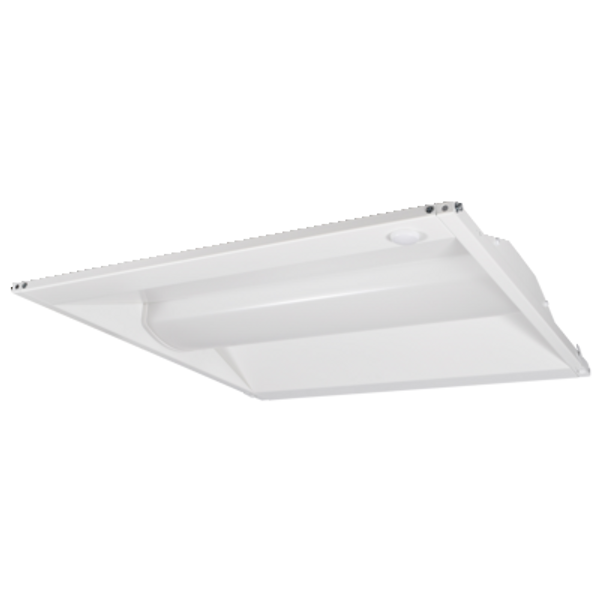

SYLVANIA UltraLED™ 2x2 Retrofit Door Kit – 23W, 3500K
UPC Code: 046135610998
Overview
The SYLVANIA UltraLED™ 2x2 Retrofit Door Kit offers a scalable and energy-efficient solution for commercial lighting upgrades. This 23W retrofit delivers 2990 lumens of soft neutral 3500K light at an exceptional 130 LPW. Designed for contractors, facility managers, and large-volume projects, this 48-unit pallet pack is ideal for fast rollouts. Each unit installs easily into standard 2x2 recessed troffer housings using a plug-and-play quick disconnect.
Key Features
- High Output: 2990 lumens at just 23W (130 LPW)
- Neutral Color Temperature: 3500K with CRI ≥ 80
- Volume Pack: 48 retrofit kits per pallet
- Dimmable: 0-10V dimming ready
- Tool-Free Connection: Plug-and-play quick disconnect
- Rated for 100,000 Hours: (L70) with 5-year warranty
Product Specifications
| Attribute | Detail |
|---|---|
| Wattage | 23W |
| Lumens | 2990 lm |
| Efficacy | 130 LPW |
| Color Temperature | 3500K (Neutral White) |
| CRI | ≥80 |
| Rated Life | 100,000 hours (L70) |
| Voltage | 120-277V (UNV) |
| Power Factor | ≥0.90 |
| Total Harmonic Distortion (THD) | < 20% |
| Dimming | 0-10V Compatible |
| Mounting Type | Recessed (Retrofit for 2x2 Troffers) |
| Housing Material | Steel |
| Finish | White |
| Connectors | Plug, Quick Disconnect |
| Dimensions (L x W x H) | 23.82" x 23.86" x 2.4" |
| Weight per Unit | 3730g (8.22 lbs) |
| Pack Size | 48 Units (Pallet) |
Application & Use Cases
- Corporate Offices
- Retail Stores & Chain Rollouts
- Educational Facilities
- Commercial Warehouses & Multi-Tenant Buildings
- Lighting Contractor Projects & Energy Audits
Installation: Fits into standard 2x2 recessed troffer housings. Retrofit design allows fast, no-removal upgrades.
Certifications & Compliance
- cULus Listed (Damp Locations)
- RoHS Compliant
- FCC Certified
- NLB Trusted Warranty Program
Traditional Lighting Comparison
| Traditional Setup | Fluorescent Wattage | LED Retrofit Wattage | Energy Savings |
|---|---|---|---|
| 3 x 17W T8 (2x2) | 48W | 23W | 52% |
| 2 x U31W T8 (2x2) | 56W | 23W | 59% |
Helpful Tips
- Perfect for multi-site rollouts and high-volume projects
- Compatible with occupancy sensors for further energy savings
- Eligible for rebate and retrofit incentive programs
- Fast ROI for commercial buildings and maintenance contractors
